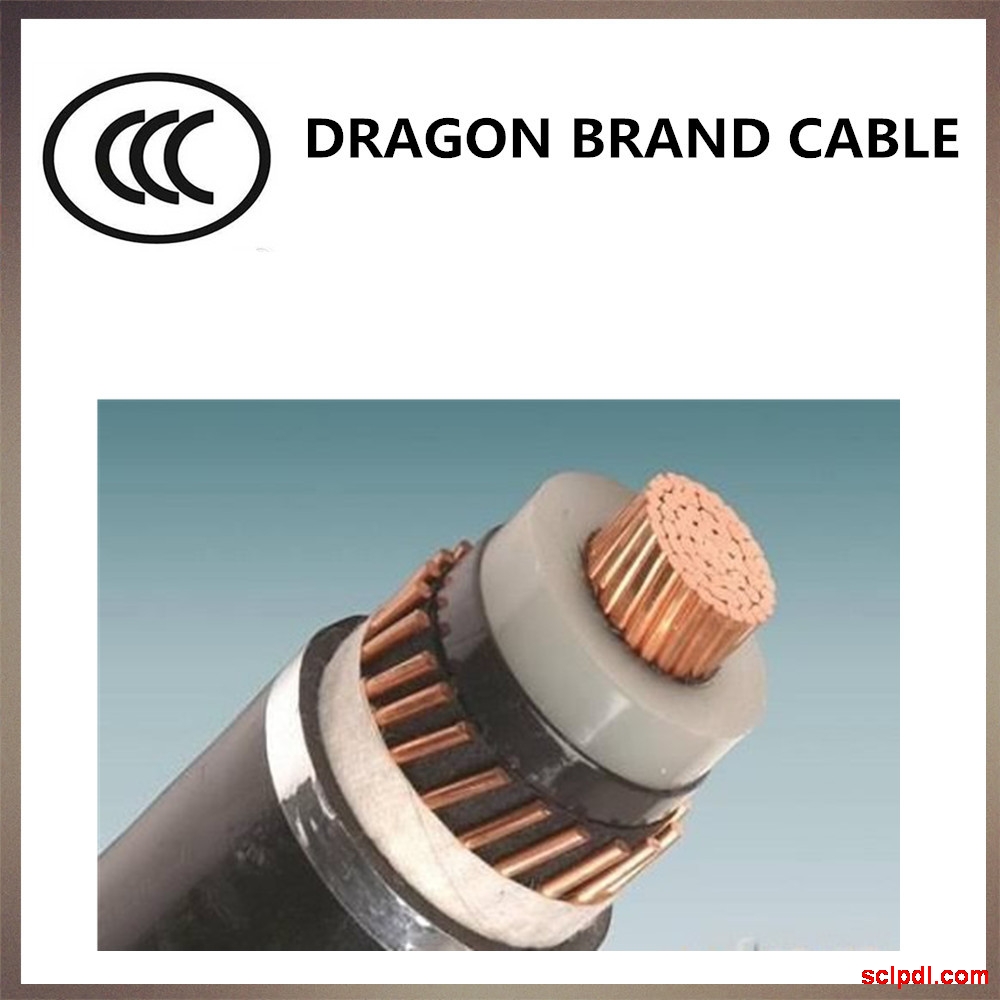

YJV32, YJLV32, Cu or Al /XLPE/CTS or CWS/PVC/SWA/PVC |
? |
||
|
Voltage? |
1.8/3kV, 1.9/3.3kV, 6/10kV, 6.35/11kV, 8.7/10kV, 8.7/15kV, 12/20kV, 12.7/22kV, 18/30kV, 19/33kV, 26/35kV |
? |
|
|
Cores? |
1C and 3C |
? |
|
|
Range of Nominal cross section? |
25 mm2?～?630 mm2 |
? |
|
|
Application? |
The product is suitable for use in power transmission and distribution lines with rated power frequency voltage 3.6/6kV～26/35kV. For laying indoors, in tunnel, cable trench, well or direct in ground, able to bear external mechanical forces, and certain force. |
? |
|
|
Standard? |
IEC 60502, BS 6622, GB/T12706 |
? |
|
|
Constructions? |
Conductor: |
Copper or Aluminium Compacted |
? |
|
Insulation: |
XLPE |
? |
|
|
Metallic screen: |
Copper tape or Copper wire |
? |
|
|
Armour: |
SWA (Remark: for single core the armour should be AWA or SSWA) |
? |
|
|
Sheath: |
PVC, PE or LSZH |
? |
|
|
Max. Operating Temperature? |
90 ℃ |
? |
|
|
Packing? |
Steel drum or as per requirement |
? |
|
|
Production Capacity? |
10 kilometer / day |
? |
|
|
MOQ? |
500~1000 meters for 6.35/11kV cable, 500 meters for other voltage |
? |
|
|
Delivery time? |
10?～?15 working days |
? |
|
|
Remark? |
The cable can be of flame retardance, fire resistance, environment friendly or other property |
|
|
